Fault Injection

contents

Power / VCC - Voltage Glitch#

Power glitch injection is a physical attack technique used to test and exploit vulnerabilities in electronic devices by causing controlled, temporary power disturbances. A VCC glitch, also known as a supply voltage glitch, is a specific type of power glitch attack targeting the voltage supply (VCC) of a microcontroller or integrated circuit (IC) in electronic devices.

The primary goals of this attack are often one of the following:

Re-enable debugging features (e.g: Trezor One wallet)
Bypass secure boot
Gain code-execution by glitching memcpy

Tools:

Voltage Glitching with Crowbars:

import faultier
import serial

ft = faultier.Faultier()
ser = serial.Serial(ft.get_serial_path(), baudrate=115200)
ser.timeout = 0.3

ft.configure_glitcher(
    trigger_source = faultier.TRIGGER_IN_EXT0,
    trigger_type = faultier.TRIGGER_PULSE_POSITIVE,
    glitch_output = faultier.OUT_CROWBAR
)
ft.glitch(delay = 1000, pulse = 1)
print(ser.read(3))

Challenges:

Fiasco - Riscure Hardware CTF 2016 - solved using HydraBus + Custom Board with MOSFET

gpio glitch trigger PB0 pin PC15 length 100 offsets 191200
gpio glitch trigger PB0 pin PC15 length 100 offsets 191300

Fiesta - Riscure Hardware CTF 2016
Hardware Power Glitch Attack (Fault Injection) - rhme2 Fiesta (FI 100) - solved using a custom code running on a Xilinx FPGA
AVR Glitch: Modifying Code Execution Paths Using Only Voltage
Hextree Glitch Tag - The Hextree GlitchTag is a “totally not AirTag inspired” board for the nRF52832 microcontroller. It is intended as a target for the Hextree Faultier. It gives access to all pins that you need to learn basic fault-injection, including glitch characterization and so on. It also allows you to reproduce LimitedResult’s APPROTECT bypass (that was also used to hack the AirTags) without needing to microsolder!

Electromagnetic Fault#

Electromagnetic Fault Injection is an advanced technique used in hardware security and testing, where electromagnetic pulses are used to induce faults in electronic devices

Tools:

findus - Library to perform fault injection attacks with the PicoGlitcher, Chipwhisperer Husky or Chipwhisperer Pro
emfindus - Add-on library to findus to perform electromagnetic fault injection (emfi) attacks with the ChipSHOUTER
Dirt cheap Electromagnetic Fault Injection

Challenges:

Fiesta - Riscure Hardware CTF 2016 - pedro-javierf - solved using a custom EMFI

Clock Glitch#

This technique involves momentarily disrupting or altering the clock signal of a device to induce errors or malfunctions in its operation.

Challenges:

Fiesta - Riscure Hardware CTF 2016 - jcldf - solved using a clock glitch

Pin2pwn#

pin2pwn: How to Root an Embedded Linux Box with a Sewing Needle - Brad Dixon - Carve Systems - DEFCON 24

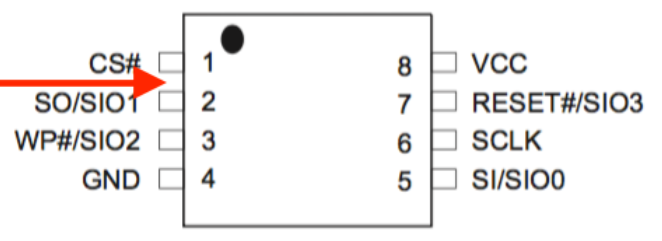

An attacker can short the pins of an external SPI flash:

The MCU will not be able to get data from the external flash and then show a stacktrace, get a shell in the bootloader or at worst, a root shell on the embedded Linux.

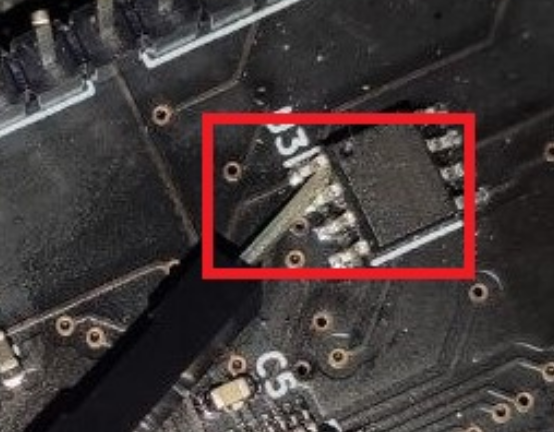

Here is a practical example, putting a cable between MOSI and Chip Select :
